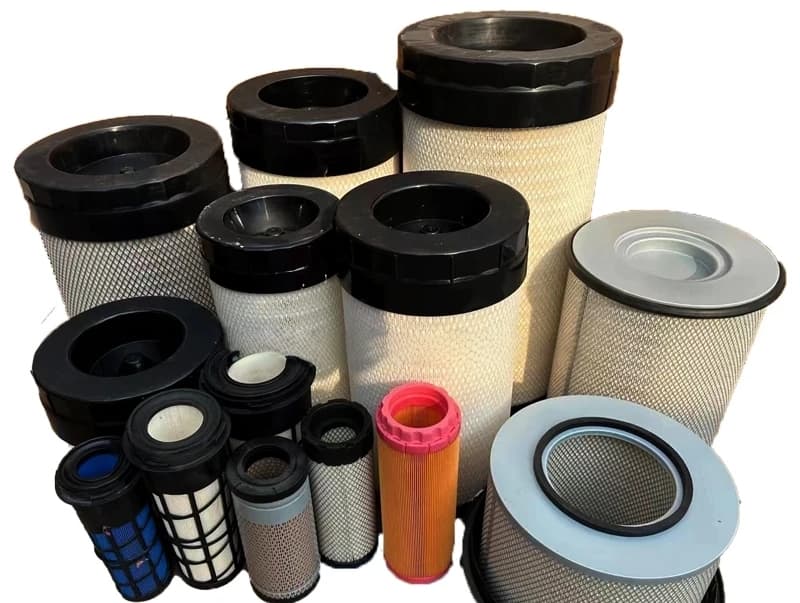

High dust holding capacity air filter element for truck-Guohao heavy duty filter
Originating from a premier filter factory in China, we are a trusted enterprise certified with IATF 16949. Our products are rigorously tested against ISO 5011, the global authority standard for air filters(HS code: 842131). We deliver heavy-duty filters that perfectly combine premium quality with competitive pricing.

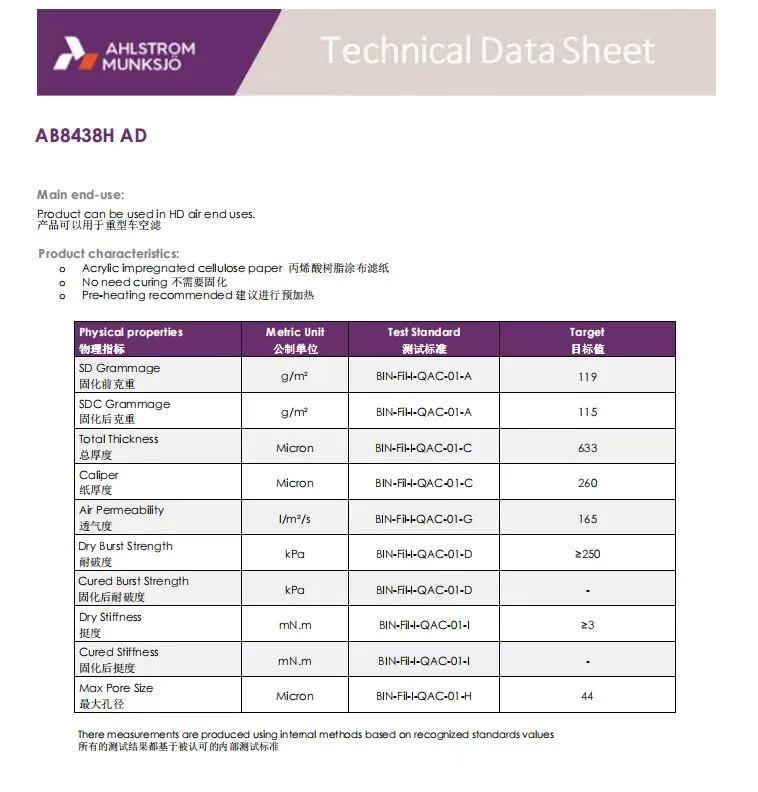

Ahlstrom composite air filter media
The filter paper we selected features a deep filtration mechanism, achieving a perfect balance between high efficiency and dirt-holding capacity. Unlike ordinary filter paper that relies solely on surface interception—leading to rapid clogging—our high-performance AB8438H AD media boasts a gradient density structure. Its outer layer intercepts large particles, while the inner layer captures fine dust. This 'deep filtration' capability allows the filter to hold significantly more dust, thereby extending maintenance intervals. Furthermore, this media is treated with special resins to provide exceptional hydrophobicity. This prevents the paper from swelling due to moisture or failing due to oil erosion, ensuring stable filtration efficiency even in extreme climates. It is ideally suited for the harsh environments heavy-duty trucks often face, such as high humidity or oil mist
Structural Design: Optimizing Airflow and Reducing Resistance

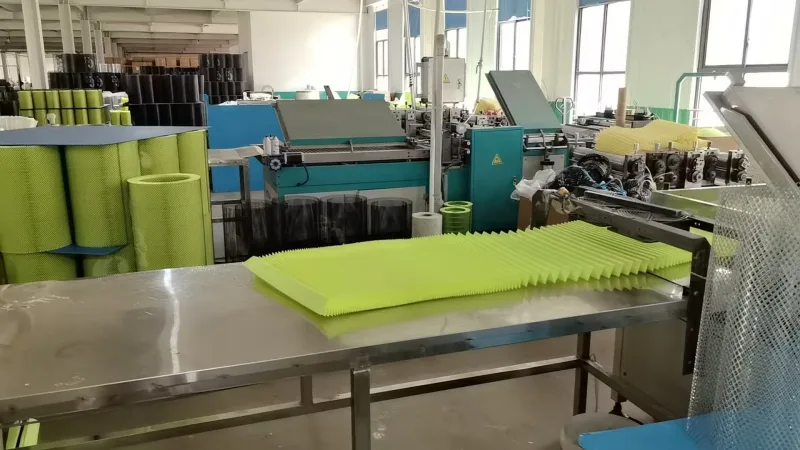

High dust holding capacity does not mean high resistance. On the contrary, Guohao heavy duty filter maintains low initial resistance while ensuring high filtration efficiency. This is mainly due to our scientifically designed pleat spacing: the folding density and depth of the filter paper are precisely calculated. Too dense will narrow the airflow channels and increase intake resistance; too sparse will waste space and reduce the filtration area. By maximizing the use of filter media area, we ensure smooth engine breathing and directly reduce fuel consumption.
Full Polyurethane (PU) Foam Sealing: Eliminating the Risk of "Short-Circuiting"
For heavy-duty truck engines, even an extremely small amount of unfiltered air leakage—a "short circuit"—can cause cylinder scoring. Therefore, sealing performance is the bottom line of quality. Guohao heavy duty filter features a full polyurethane (PU) foam-in-place seal: High-quality filter elements abandon traditional rubber gaskets in favor of foam-in-place polyurethane sealing strips. The PU expands during the curing process, filling all microscopic gaps and forming a strong molecular bond with the metal end cap, ensuring no leakage even under severe vibration.

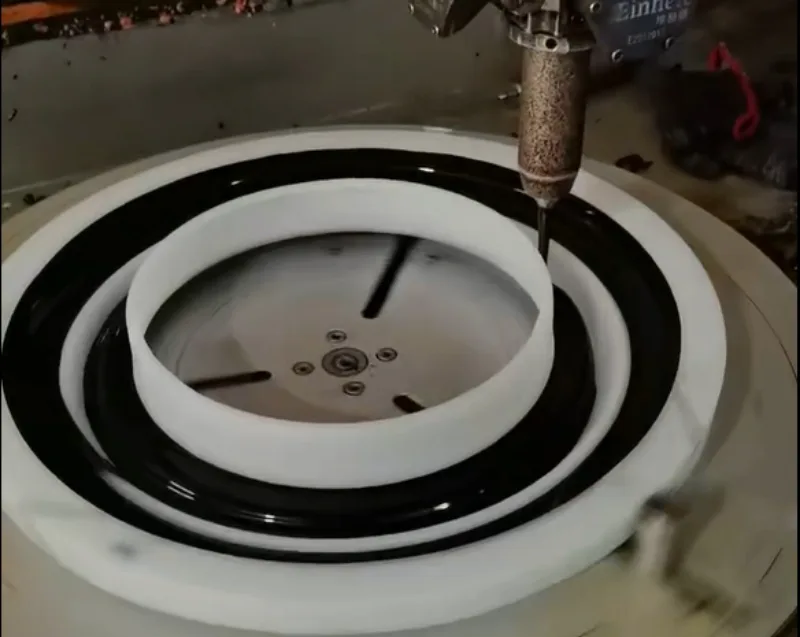

Guohao heavy duty filter-Bonding strength
The adhesion between the filter paper and the end caps must pass rigorous shear force testing. High-quality products use high-temperature-resistant, aging-resistant structural adhesive to ensure that the filter layer structure does not delaminate or detach within a temperature range of -40°C to 120°C.
