What is the Precise RFA-250*30F-Y Hydraulic Filter?

Precise RFA-250*30F-Y is a heavy-duty Hydraulic Filter engineered to OEM-quality standards as a direct replacement. It is built to match the original dimensions, fit and filtration performance for a no-modification interchange.

What are the specifications of Precise RFA-250*30F-Y?

Key specifications of Precise RFA-250*30F-Y: Filter Type: Tank-Mounted Hydraulic Return Filter, Series: RFA, Nominal Flow Rate: 250 L/min, Filtration Accuracy: 30 µm, Port Diameter: 50 mm. Always confirm these against your machine and operating conditions before ordering.

What is the minimum order quantity and lead time for Precise RFA-250*30F-Y?

Precise RFA-250*30F-Y ships at a minimum order quantity of 100 pieces, with distributor and fleet pricing and lead time on request. Contact us with the part number for a quote.

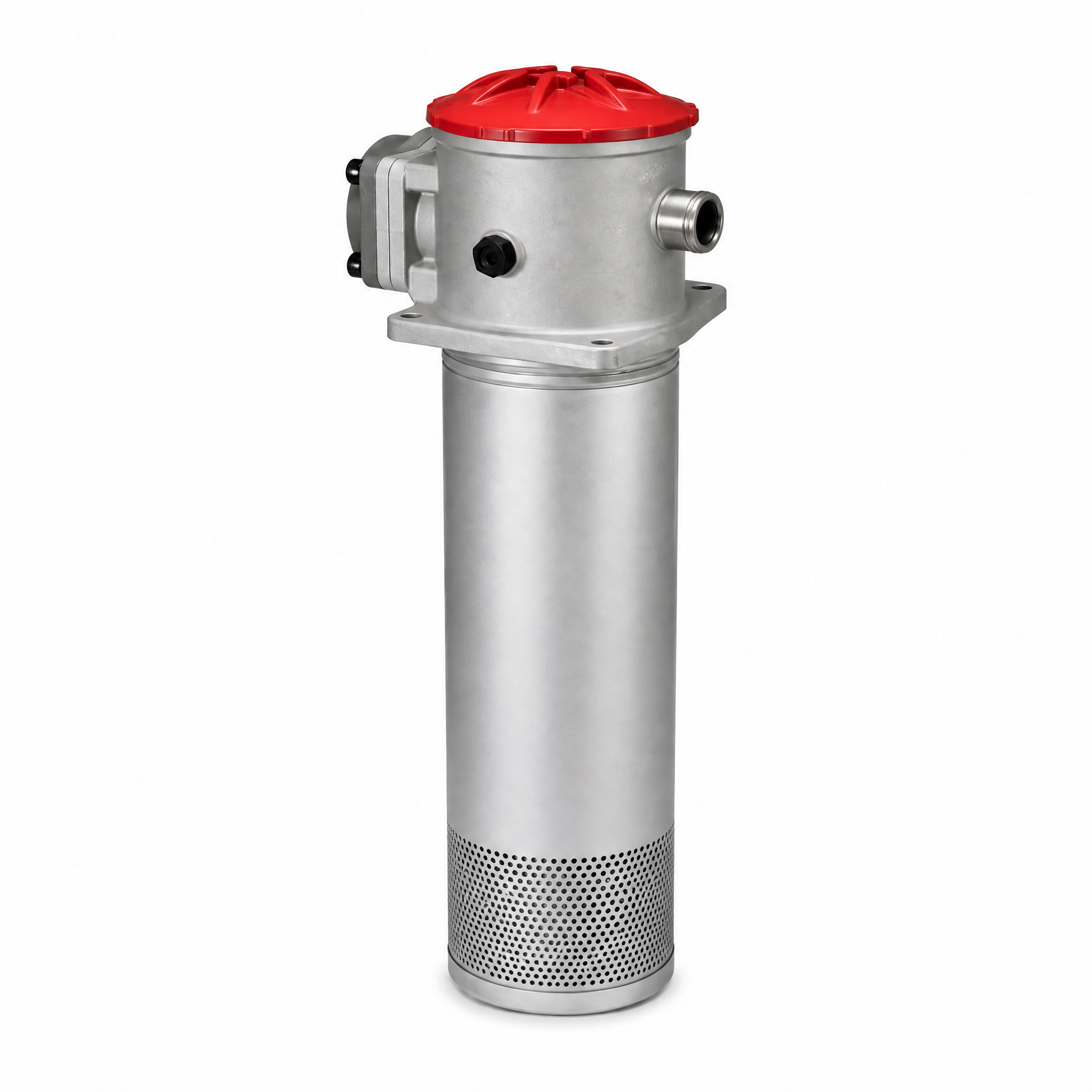

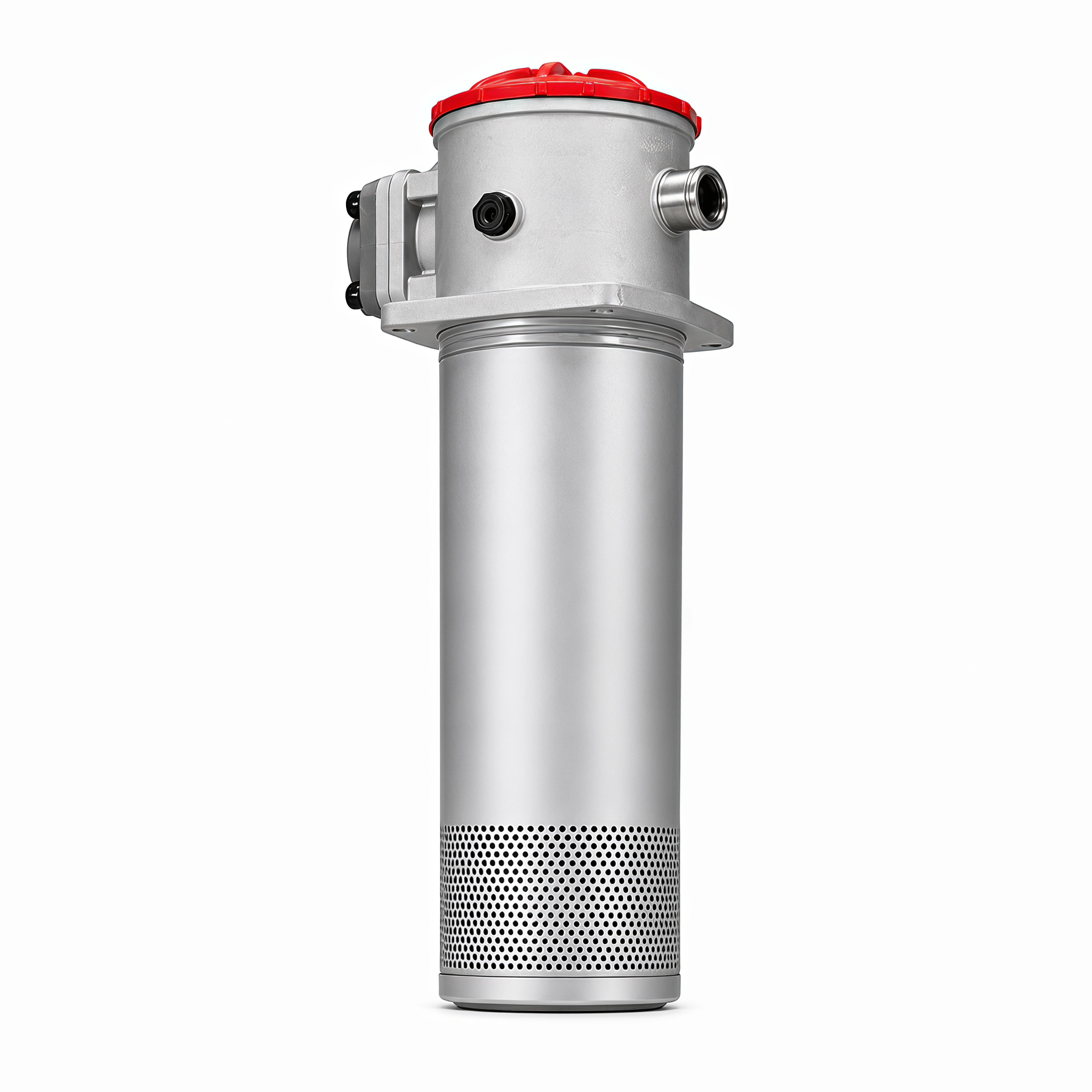

Precise RFA-250*30F-Y Hydraulic Return Filter

Name: Precise RFA-250*30F-Y Hydraulic Return Filter
Brand: Precise
SKU: RFA-250*30F-Y
Price: 31.60 USD
Availability: InStock

Part NumberRFA-250*30F-Y

Reference BrandPrecise

TypeHydraulic Filter

MOQ100 Pieces

Delivery15 days

Price

$31.6

Reference price only. Final pricing depends on quantity, packaging, destination, and trade terms.

Send model or photo

Share the current number or product image.

Verify fitment

We check specifications and application.

Confirm the quote

Agree sample, packaging, lead time and price.

Precise RFA-250*30F-Y Hydraulic Return Filter

The RFA-250*30F-Y is a tank-mounted mini-type hydraulic return filter referenced to the LEEMIN RFA-250×30F-Y specification. This reviewed draft records the official 250 L/min, 30 µm, flanged model data for identification, purchasing review, and quotation requests.

Buyer decision support

OEM and private-label supply

For RFA-250*30F-Y, Precise can discuss samples, stable production, packaging, labeling, and OEM/private-label requirements from MOQ 100 pieces.

Information to send

Send the current part number, product photos, dimensions or drawings, Filter Type, Series, Nominal Flow Rate, and Filtration Accuracy, quantity, destination market, and packaging request to speed up verification.

Technical Specifications

Parameter	Value
Filter Type	Tank-Mounted Hydraulic Return Filter
Series	RFA
Nominal Flow Rate	250 L/min
Filtration Accuracy	30 µm
Port Diameter	50 mm
Nominal Pressure	1.6 MPa
Initial Pressure Loss	≤0.075 MPa
Indicator Signal Pressure	0.35 MPa
By-pass Valve Opening Pressure	0.4 MPa
Connection	Flanged
Indicator	CYB-I, ≤ DC24 V
Element Model	FAX-250×30
Weight	4.35 kg
Overall Length	422 mm
Body Diameter	110 mm
Dimensions
Filtration Efficiency
Replacement Interval
Filter Media Brand
Packaging

Frequently asked questions

What is the Precise RFA-250*30F-Y Hydraulic Filter?: Precise RFA-250*30F-Y is a heavy-duty Hydraulic Filter engineered to OEM-quality standards as a direct replacement. It is built to match the original dimensions, fit and filtration performance for a no-modification interchange.
What are the specifications of Precise RFA-250*30F-Y?: Key specifications of Precise RFA-250*30F-Y: Filter Type: Tank-Mounted Hydraulic Return Filter, Series: RFA, Nominal Flow Rate: 250 L/min, Filtration Accuracy: 30 µm, Port Diameter: 50 mm. Always confirm these against your machine and operating conditions before ordering.
What is the minimum order quantity and lead time for Precise RFA-250*30F-Y?: Precise RFA-250*30F-Y ships at a minimum order quantity of 100 pieces, with distributor and fleet pricing and lead time on request. Contact us with the part number for a quote.
